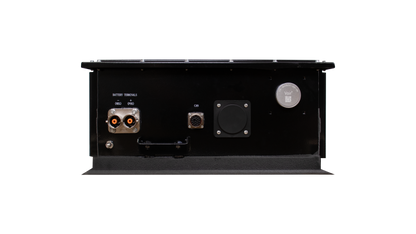

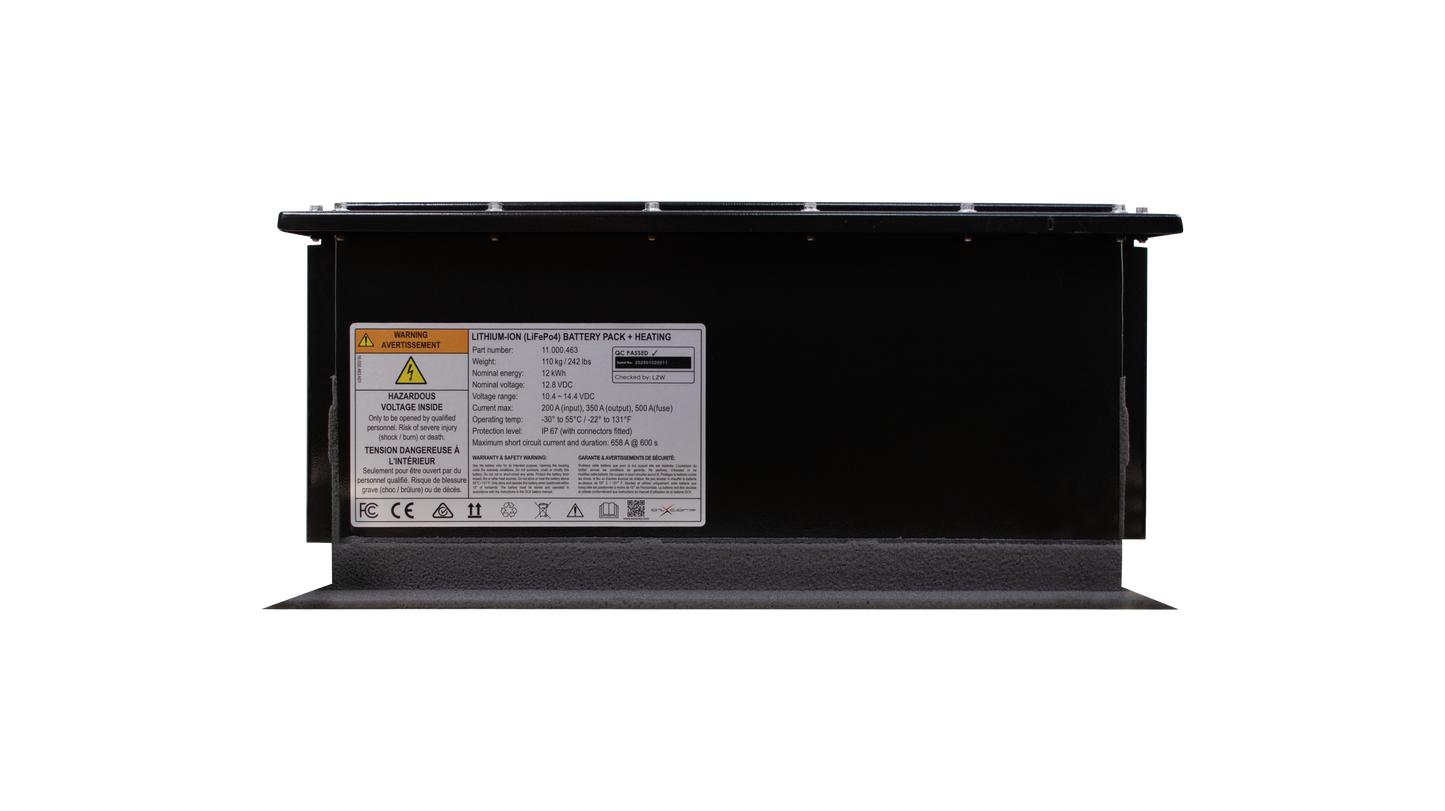

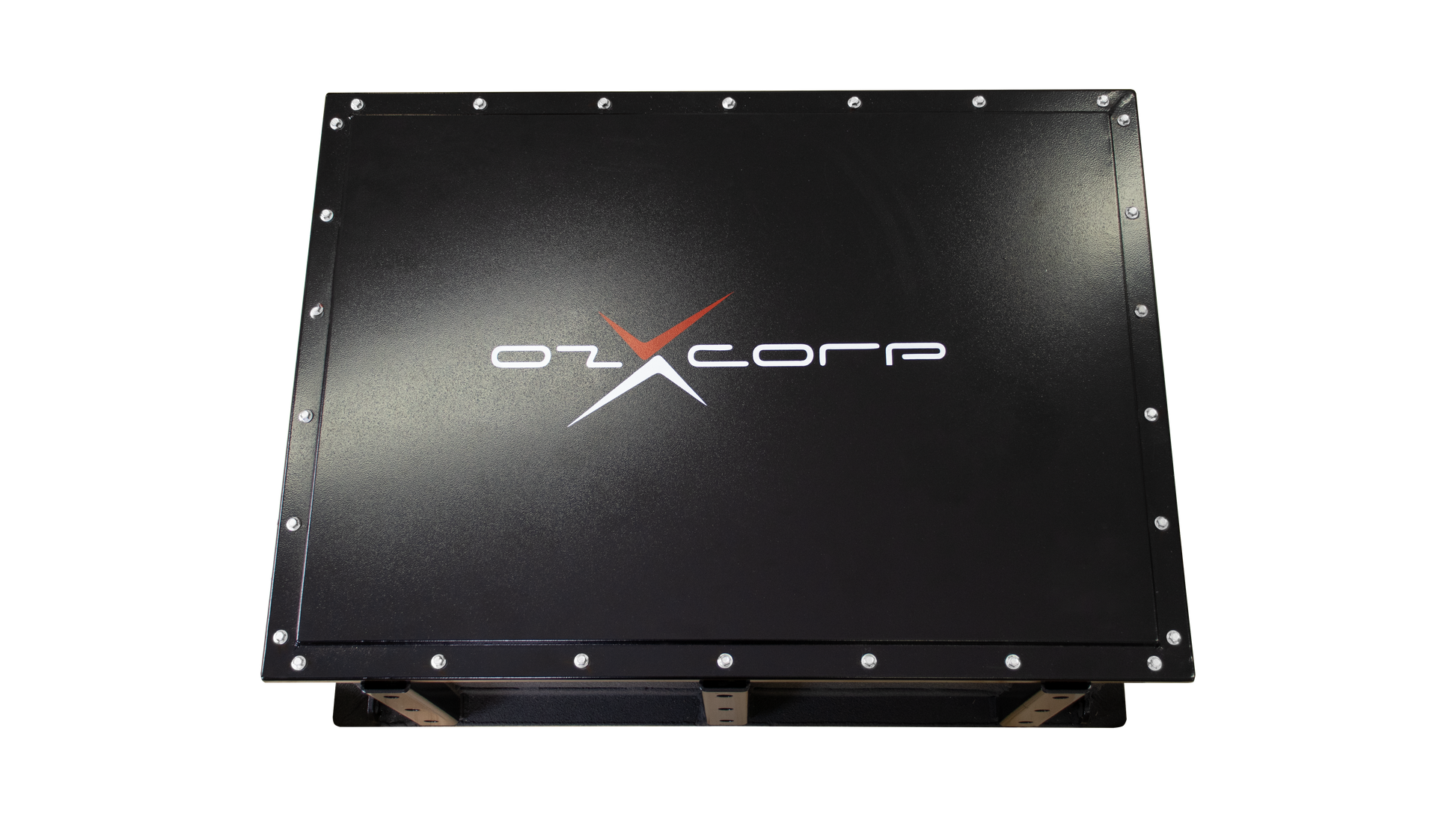

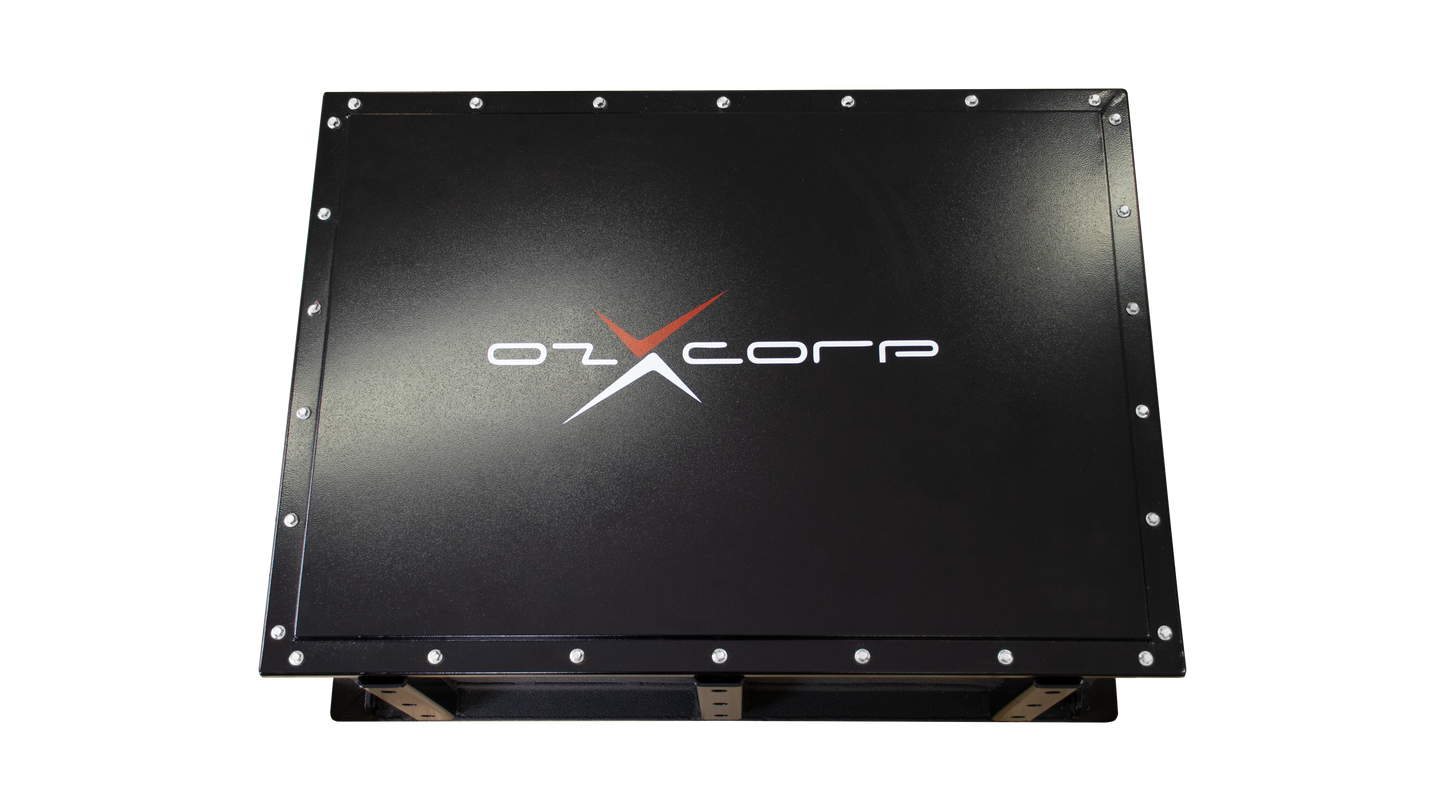

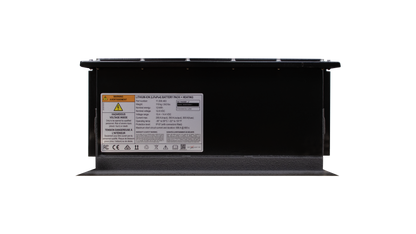

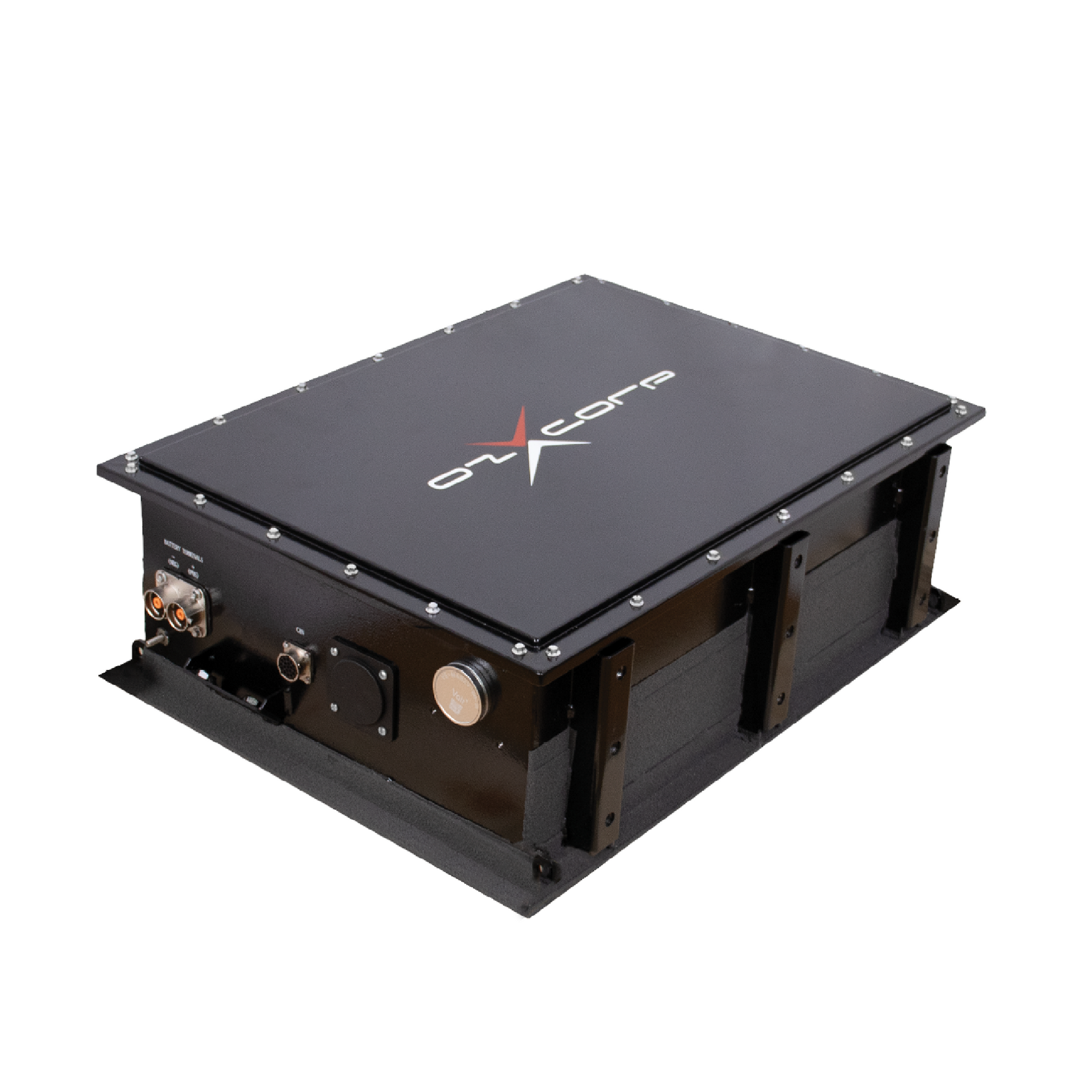

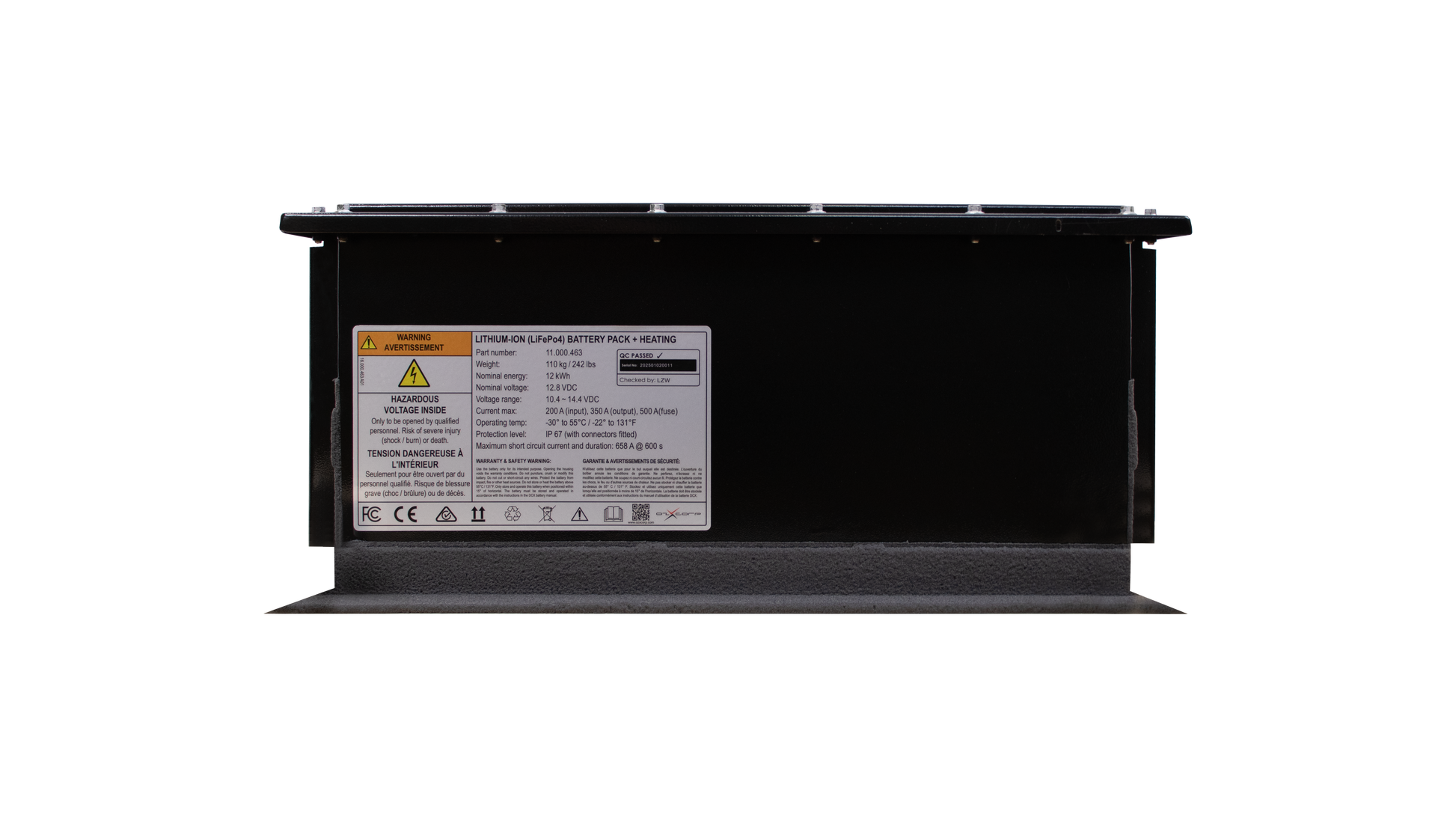

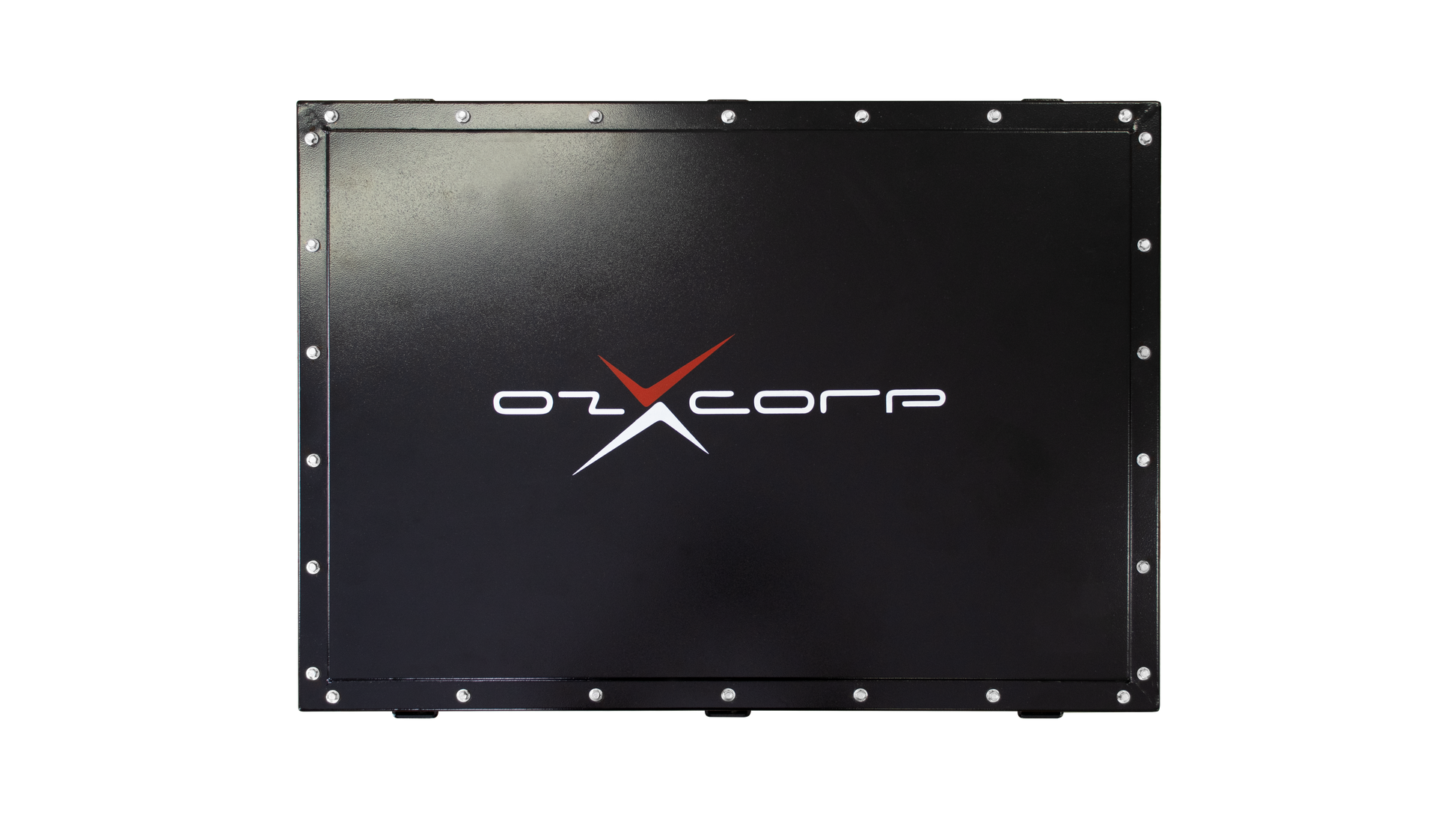

DCX 12V Chassis Mount Battery – 942Ah

DCX 12V Chassis Mount Battery – 942Ah

$9,299.99 AUD
$9,299.99 AUD
Sale Sold out

DCX-BAT-12-942

12.1kWh of DCX Power. Built Into the Chassis.

Go further with a battery system engineered for the way modern caravans and off-grid vehicles are actually built. The DCX 942Ah combines 12.1kWh of lithium energy with a purpose-designed chassis-mount architecture, helping manufacturers and owners maximise onboard power while keeping battery mass low, secure and integrated with the vehicle. With integrated heating, automotive-grade connectors, IP67 protection, advanced BMS protection and UL1973:2022 compliance, DCX is engineered beyond the traditional "battery in a box" approach.

Key Benefits

  • Engineered for the vehicle, not adapted to it — built around the chassis from the beginning
  • More energy from fewer units — less interconnection complexity, cleaner installation
  • Designed for mobile environments: vibration, movement and temperature extremes
  • Integrated heating supports reliable operation in demanding conditions

What's Included

  • 1x DCX 12.8V 942Ah Chassis Mount Battery

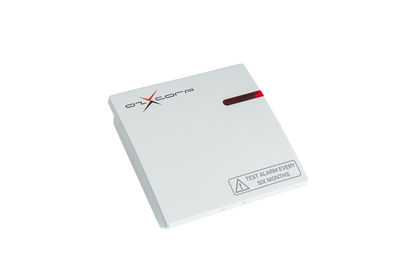

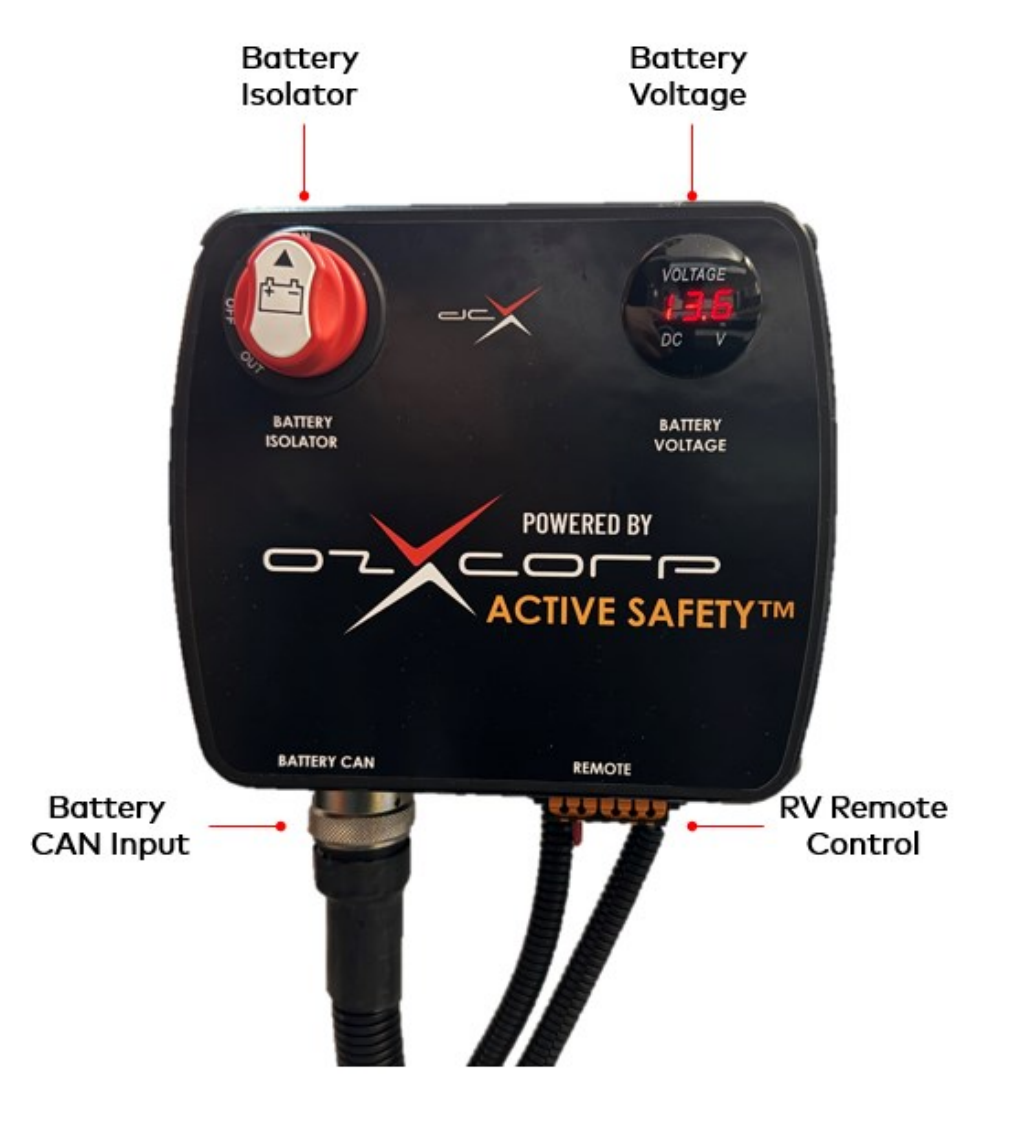

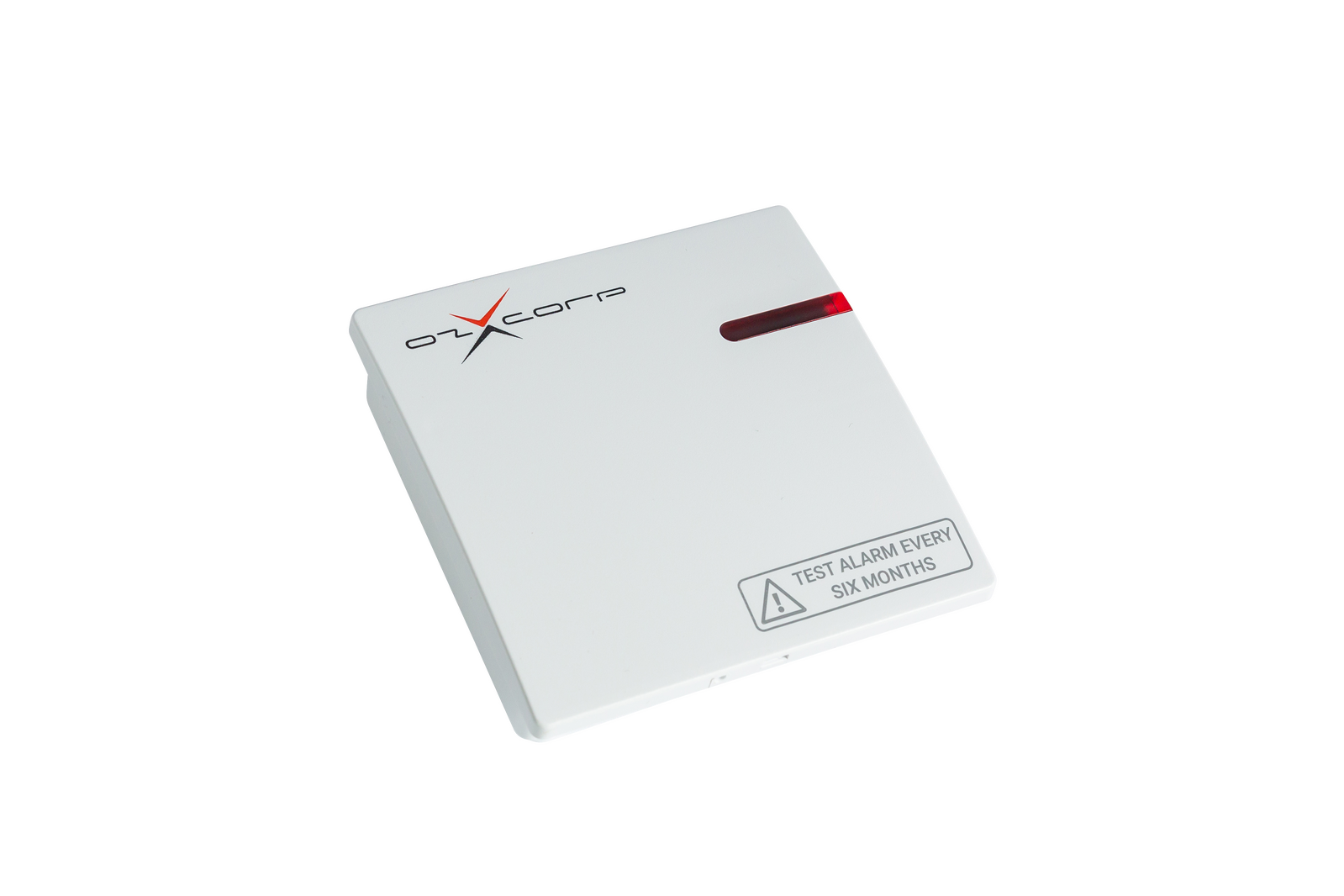

  • 1x Active Safety Box

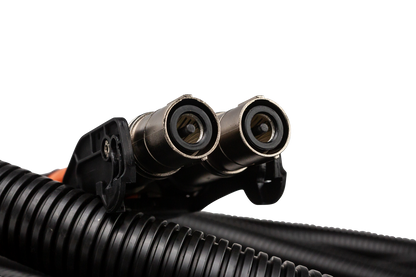

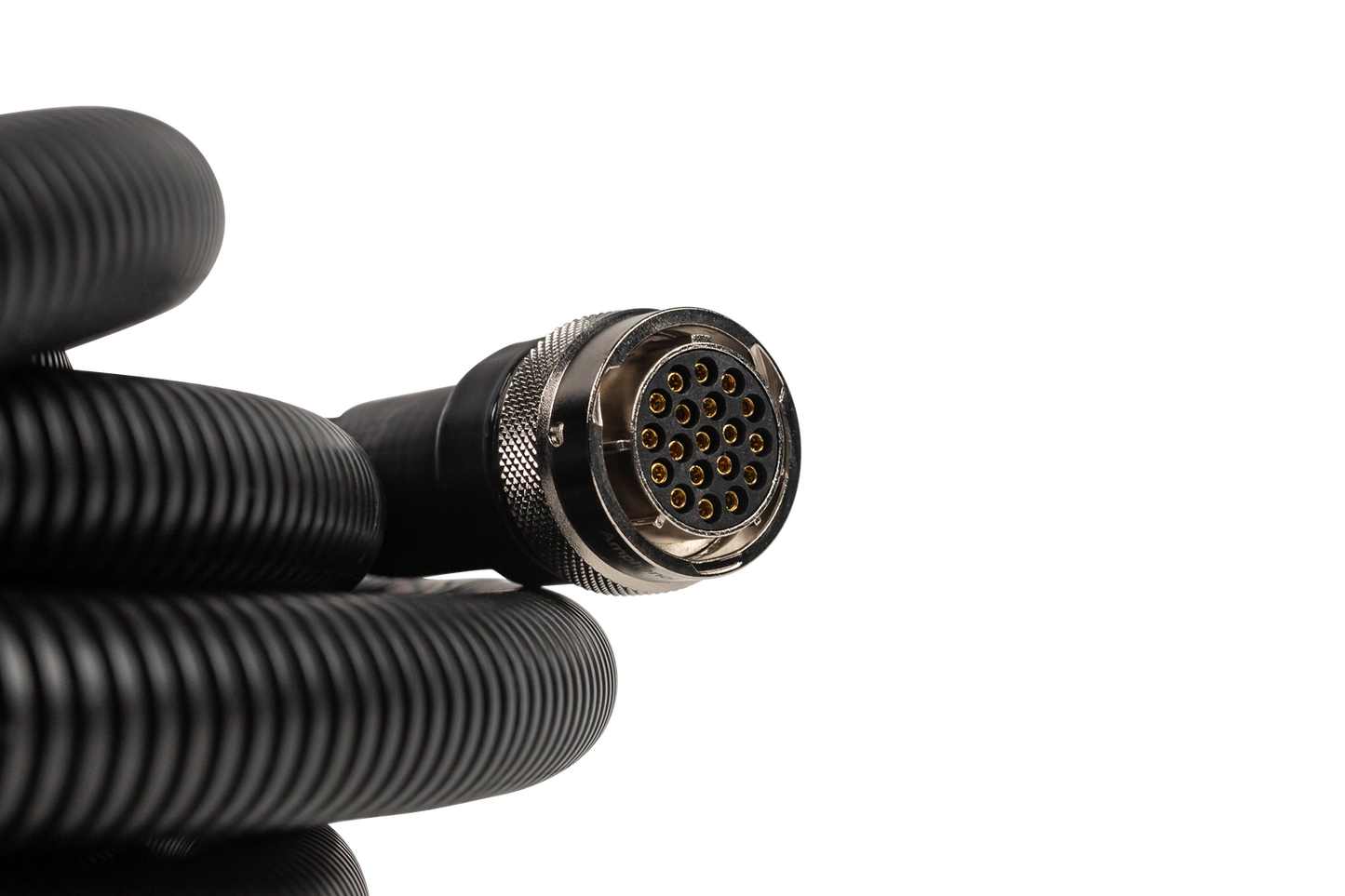

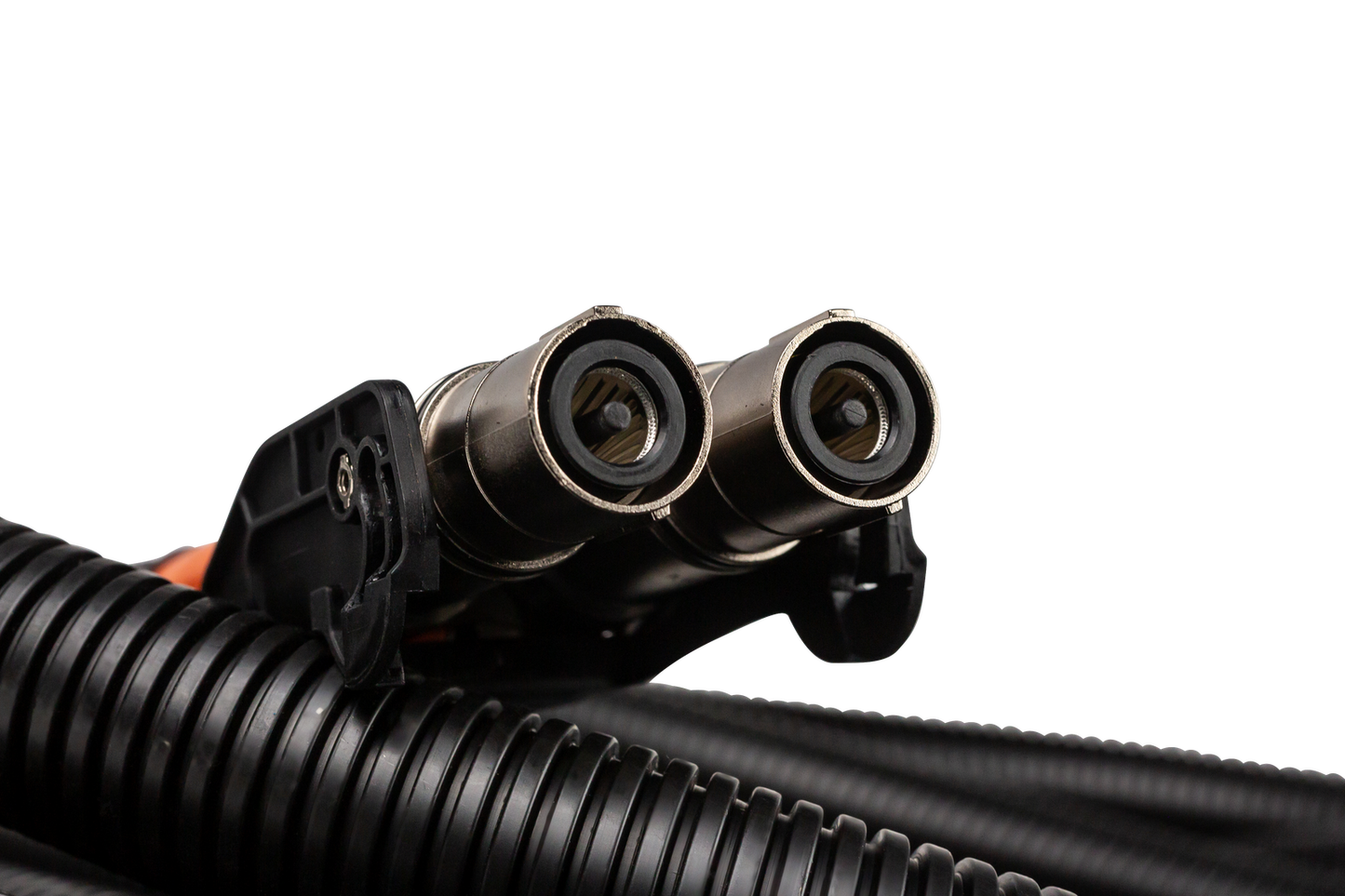

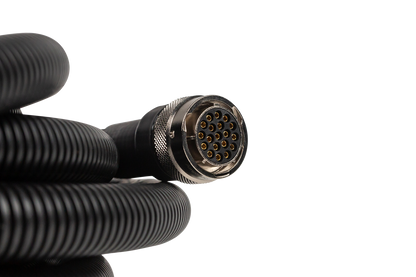

  • 1x Connector Kit
  • 1x Battery Mounting Kit

Chassis-Mount Advantage

  • Lower centre of gravity
  • Improved weight distribution
  • Secure mechanical integration
  • Reduced reliance on internal storage compartments
  • Cleaner electrical installation
  • Better utilisation of available vehicle space
  • Designed for OEM integration

Technical Specifications

  • Nominal Voltage: 12.8V
  • Capacity: 942Ah
  • Energy: 12.1kWh
  • Chemistry: LiFePO4
  • Installation: Chassis mount
  • Protection: IP67
  • Heating: Integrated

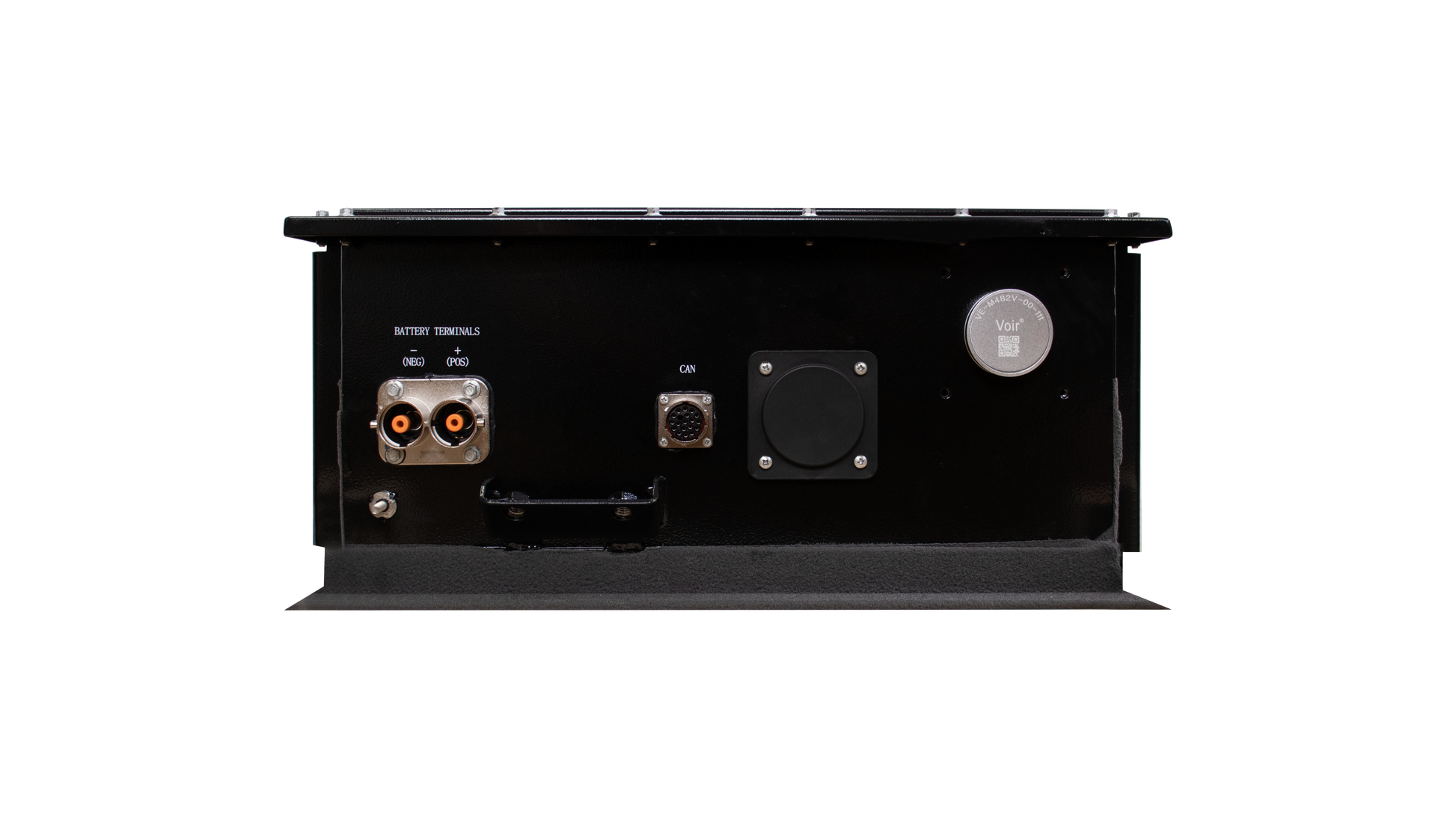

  • Connectors: Automotive-grade
  • Cycle Life: 8,000+ cycles
  • Weight: 100kg
  • Compliance: UL1973:2022
  • Warranty: 7 years

Built For

Luxury caravans, large off-grid RVs, full-time touring, remote work and recreation, high-energy appliance loads, inverter-based systems, and premium OEM caravan builds.

Dimensions to be confirmed — full technical datasheet available on request. Talk to an expert.

View full details
Customer Reviews

No reviews yet — be the first to share yours.

Write a Review

Want it professionally installed?

Find an OzX-trained installer near you.

Find an Installer

Frequently Asked Questions

How much usable energy does the DCX 942Ah battery provide?

The DCX 942Ah delivers 12.1kWh of usable energy, enough for full-time off-grid living, running fridges, lighting and appliances night after night without a powered site.

How is it mounted?

Chassis-mounted between your caravan's steel frame rails, integrated with the vehicle's structure rather than installed as a standalone unit inside a cabinet.

What protection does it have against weather and vibration?

IP67 protection, integrated heating, and automotive-grade connectors, engineered specifically for the vibration, movement and temperature extremes of mobile applications.

What's included in the box?

The battery, an Active Safety Box, a Connector Kit, and a Battery Mounting Kit.

What warranty and certification does it carry?

A 7-year warranty, 8,000+ cycle design life, and UL1973:2022 compliance.
